Carbine

Carbine Push Lock

  • Sale
  • Regular price $40.00
Tax included. Shipping calculated at checkout.


Need to be Assembled

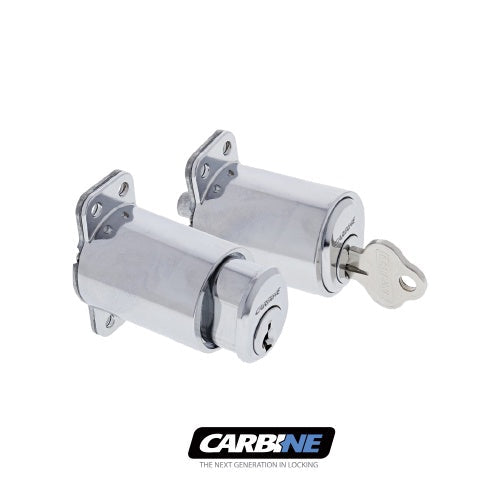

The Carbine Push Lock is the perfect choice for both metal and timber furniture and sliding cupboard doors. Featuring a snap lock mode (as packaged) and a key retain mode, the Carbine Push Lock accepts restricted master key systems so it can integrate with your existing system.

  • Chrome Plate Finish
  • Uses a standard 530 cylinder
  • Can accept a 6 pin key
  • One cam which is double sided (key retain side & snap lock side)
  • Four mounting holes
  • Easy to remove the cylinder by undoing the four screws
  • Stainless steel fixing screws
  • 12mm locking pin (M4 Pin extension can be used if the retainer pin is not long enough to secure the sliding door or draw)
  • Available in no cylinder, keyed to differ, and keyed alike
  • Anti-shimming front face
  • 67.65mm width unlocked position
  • 54mm width locked position
  • 31.9mm barrel diameter
  • Trade pack box
  • Full instructions supplied
  • Barrel /cylinder + lock   comes in 2 parts for you to assemble.

Downloads

Dimensions

Instructions
