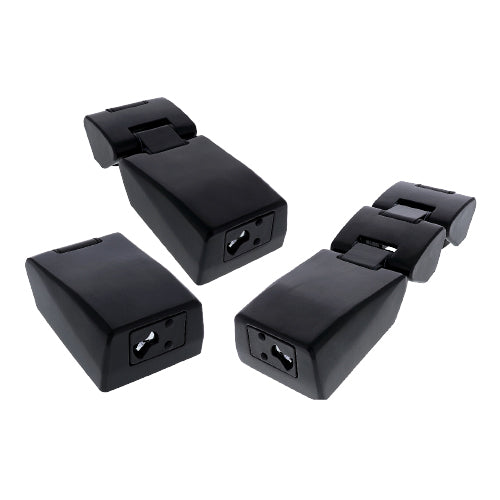

The Carbine Armadillo is a high security hasp lock. Cast in alloy steel and case hardened, the hasp lock is designed to give a high resistance to bolt cutters, jemmy bars, hammers, drills and hacksaws. With a breaking force of 2000kg the hasp lock is designed to replace conventional hasp, staple and padlock arrangement. It provides far greater physical security than traditional systems.
-- Regular model suitable for 45mm profile shop front doors.
-- Single-Hinge model is suitable for right angle mountings.
-- Double-Hinge model is suitable for right angle or curved mountings.
-- Gate-Plate Model requires the steel mounting plates to be welded to a steel frame or gate.
-- Dust Cover can be added before or after installation to give protection to the keyway against the elements.
-- KN Module Insert that replaces the Anti-Drill insert that is supplied with the hasp lock. It is required for use with high security cylinders such as Kaba, CyberKey, Medeco or BiLock.
-- Spacers are 3mm thick and sit under the Hinge or Staple to allow for misaligned doors or frames.
Instructional Videos:
What are the Vertical and Horizontal Adjustments?
How to Change the Cylinder Video?
