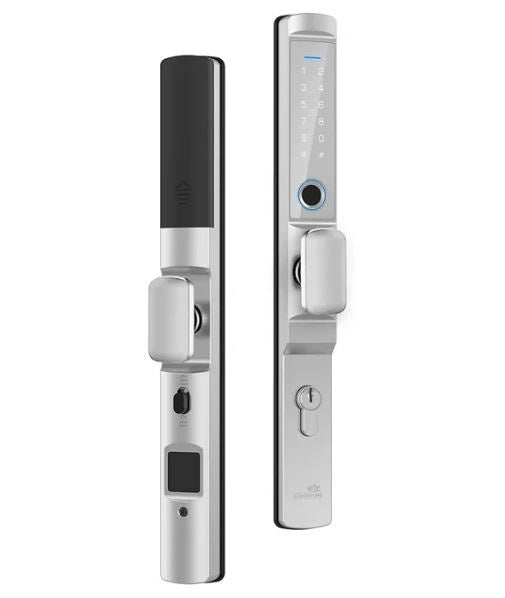

LOCKTON 'E-Series' Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.
- Designed for Sliding Door installations
- The ELEV36 - Smart Euro Mortice Lock has a single throw two point locking mechanism to suit most sliding door locks
- IP66 Rating on external handles means this lock can be installed in almost any application
- Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
- Lock is available in multiple backset sizes (20-45mm) to suit most installations
- Step by step instructions ensure ease of installation and operation
- Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
- Add up to 300 x Users
- Fingerprint sensing area is perfectly located within proximity of the handle to naturally read a thumb print for quick entry
- Optional G2 & G3 Gateway accessories allow for remote access and control of lock via internet
- Lock has Art. ELEV36-SLHD-SIL supplied but not fitted
Lock is supplied with the following:
- 1 x ELEV36 Smart Lock Handle Set
- 1 x Art. ELEV36-SLHD-SIL Set
- 2 x RFID Key Fobs
- 4 x Screw/Spindle Packs for varying door thicknesses
- 4 x AAA Batteries
- 1 x Smart Euro Sliding Mortice Lock (ordered to desired backset from dropdown)
- 1 x 6-pin C4 Half-Euro Cylinder
- 1 x Fitting Template
- 1 x Instruction Manual
PRODUCT SPECIFICATION
- Finish: Silver & Black
- Dimensions (L x W): 345 x 36mm
- Pitch: 85mm
- IP Rating: 66
- Lock Backset range: 20 - 45mm
- Suitable door thickness: 28 - 50mm
- Spindle Size: 8mm
- Handle Projection: 30mm
- Handle Length: 130mm
- Power Supply: 4 x AAA Alkaline Batteries
- Battery Life: Approx. 10,000 openings
- Safe Working Temperature: -20°C to 50°C
- 3 Year Warranty (*)
